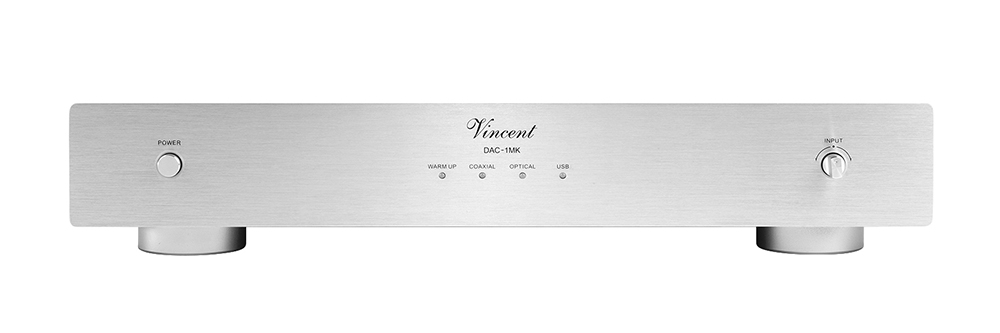

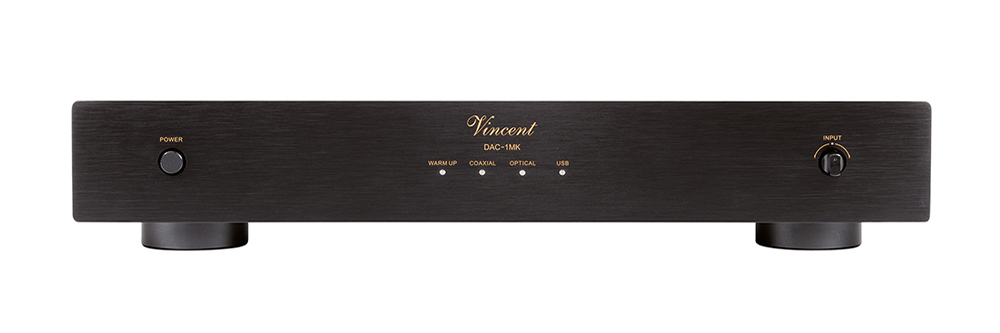

DAC-1MK

powerLine

D/A-Converter

The DAC-1MK converts digital music files with a max. sampling rate of 32 bit / 384 kHz (DSD). The core is the ES9038 decoder, which processeds the signal fully balanced to the analog section.

Technical Specifications

  • Sampling Rate Coaxial, Optical: PCM 24 Bit / 192 kHz (DSD 64)
  • Sampling Rate USB: PCM 32 Bit / 384 kHz (DSD 256)
  • Frequency Response: 20 Hz – 20 kHz (+/-0,5 dB),
  • Total Harmonic Distortion: <0.0004 %
  • Signal-To-Noise Ratio: >95 dB
  • Dynamic Range: >100 dB
  • Audio Output Voltage: 2.5 V
  • Channel Separation: >90 dB
  • Max. Power Consumption: 35 W

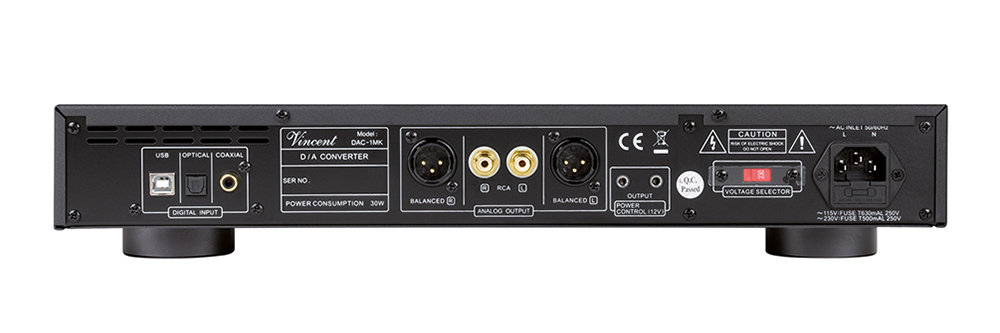

  • Inputs: 1 x USB, 1 x Optisch, 1 x Coax, 3,5 mm jack power control
  • Outputs: 1 x Stereo RCA, 1 x Stereo XLR, 3,5 mm jack power control
  • Playable Formats: MP3, WMA, AAC, AAC+, ALAC, FLAC, APE, WAV, DSD
  • Colour: Black / Silver
  • Dimensions: 430 x 79 x 343 mm
  • Weight: 5.5 kg
