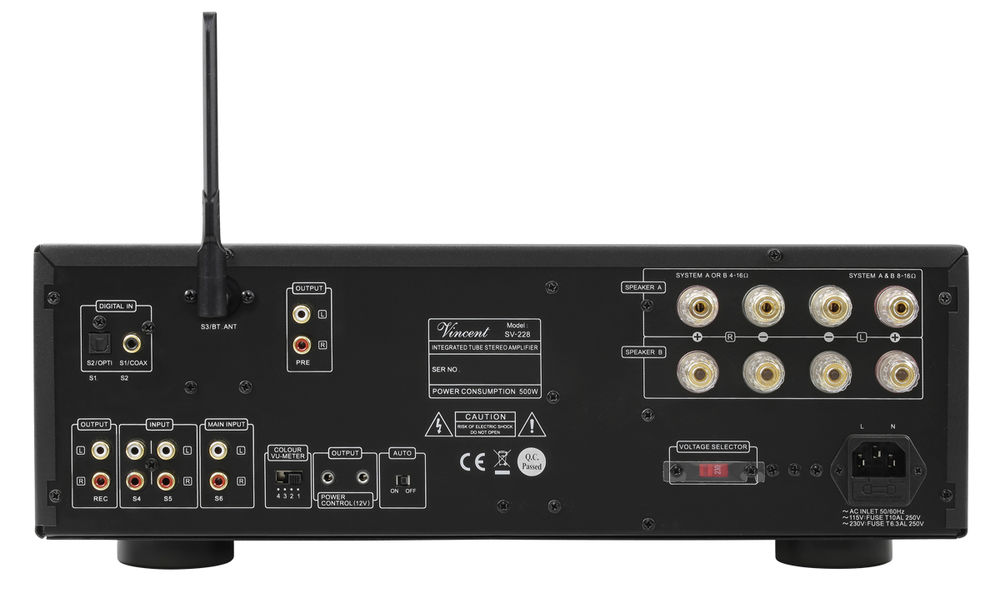

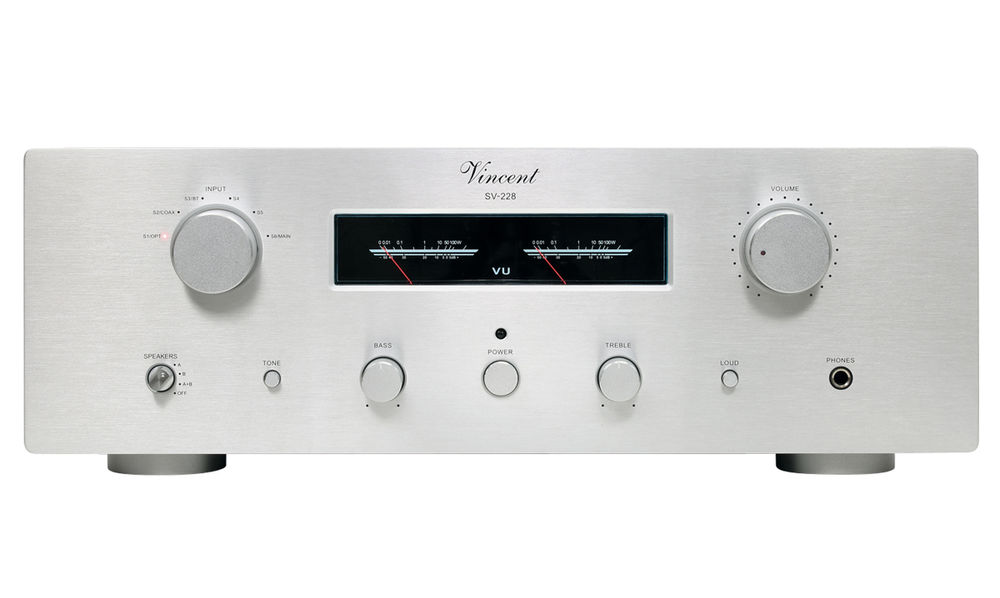

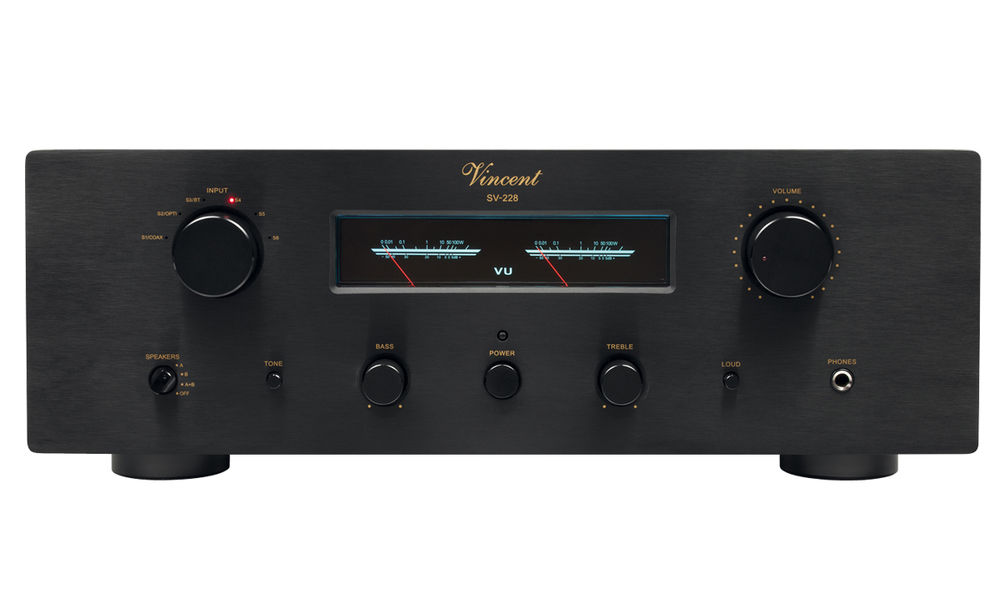

SV-228

powerLine

Hybrid Integrated Amplifier

The SV-228 is the consistent further development of one of ours successful amplifiers series in the Power Line. In a complete new design, with a VU meter embedded in the front panel, the SV-228 is the legitimate successor of the SV-227 MK.

Technical Specifications

  • Frequency Response: 20 Hz – 20 kHz (+/- 0.5 dB); 20 Hz – 50 kHz (+/- 2 dB)
  • Nominal Output Power RMS / 8 Ohm: 2 x 100 Watt
  • Nominal Output Power RMS / 4 Ohm: 2 x 180 Watt
  • Total Harmonic Distortion: < 0.1 % (1 kHz, 1 W)
  • Input Sensitivity: 560 mV
  • Signal to Noise Ratio: > 90 dB
  • Input Impedance: 47 kOhm
  • Max. Power Consumption: 350 Watt
  • Inputs: 2 x Stereo RCA, 1 x Coaxial, 1 x Optical, 1 x Bluetooth, 1 x Stereo Main In
  • Outputs: 1 x Stereo Pre Out, 1 x Stereo Rec Out, 4 x 2 Speaker Terminals
  • Tubes: 1 x 6N4, 2 x ECC82
  • Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, AAC, AC3, WMA
  • Colour: Black, Silver
  • Weight: 15.5 kg
  • Dimensions (W x H x D): 430 x 152 x 450 mm
Vincent powerLine Cataloge 20257 MB

SA-32

Hybrid Stereo Preamplifier

The further development of our hybrid preamplifier SA-31.

SP-332

Hybrid Stereo Poweramplifier

The newly developed Hybrid-Poweramplifier and felicitous successor for the legendary SP-331, make your sound more warm and natural.

SV-500

Hybrid Integrated Amplifier

A"little" hybrid amp with the successful Vincent quality and a very good balance between price and performance

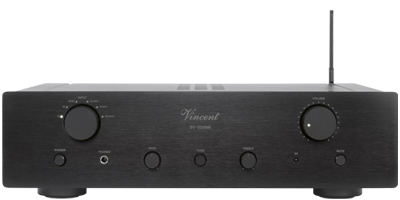

SV-500MK

Hybrid Integrated Amplifier

The SV-500 MK presents itself in a timeless design and with the typical Vincent sound character.

CD-S1.2

Hybrid CD-Player

An unusual player with no rivals, with a valve output stage and a large number of connection options.

PHO-200

Phono Preamplifier

Phono-Premamplifier for connecting your turntable to a line inout of your amplifier.

PHO-300

Phono Preamplifier

Phono-Premamplifier for connecting your turntable to a line inout of your amplifier.

PHO-500

Phono Preamplifier

A unsophisticated and low noise playback is the "job" of a good phono preamplifier. With the PHO-500 we managed this.

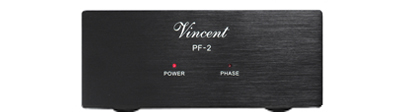

PF-2

Power Conditioner

This new PF-2 mains filter eliminates disturbing influences in your HiFi or home cinema system.

DAC-1MK

D/A-Converter

The DAC-1MK converts digital music files with a max. sampling rate of 32 bit / 384 kHz (DSD).
