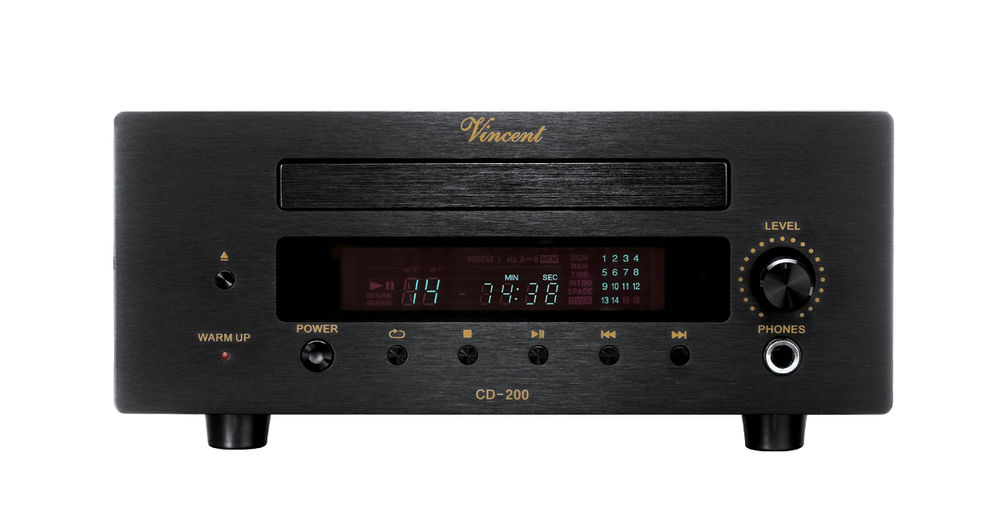

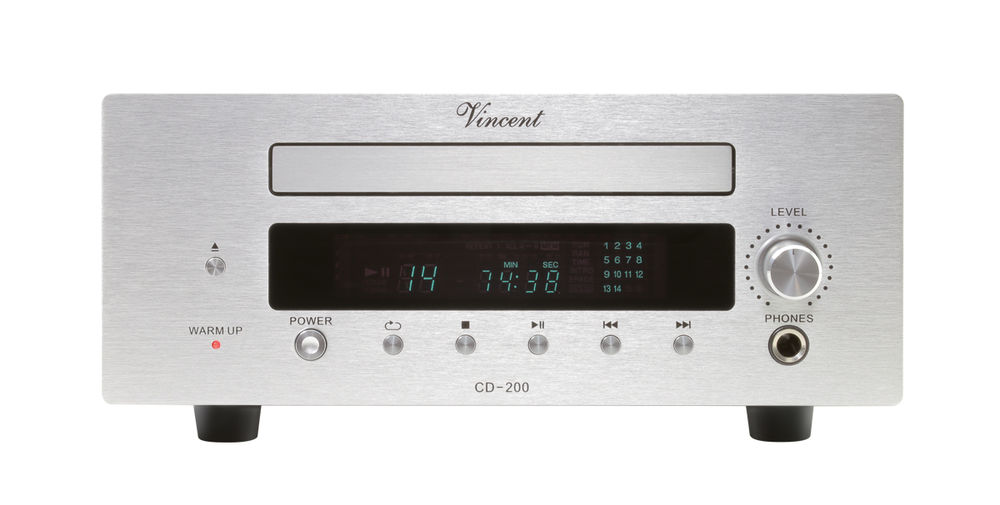

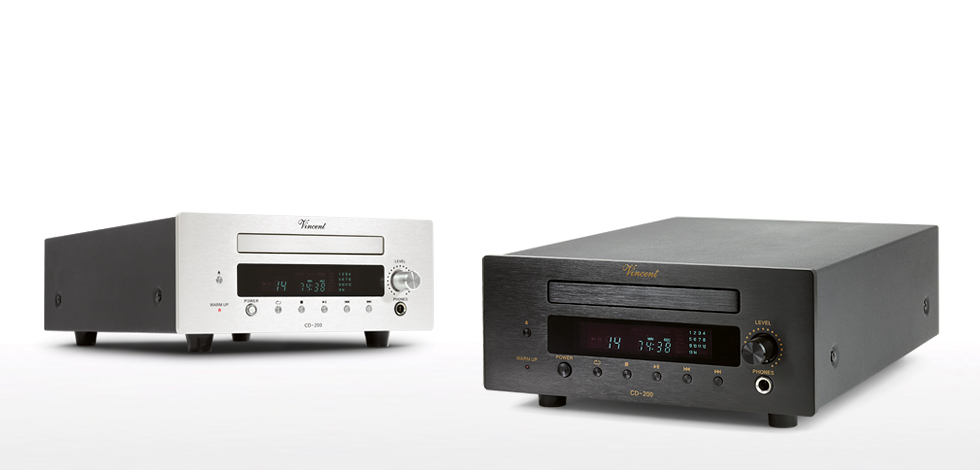

CD-200

tubeLine

Hybrid CD-Player

With the CD-200 we present the perfect match for the SV-200. The music signals which are converted by the excellent Burr-Brown chip PCM176, are being prepared by one 6N2 tube. This is responsible for the smooth and natural sound of the music.

Technical Specifications

  • D/A Converter: 24 bit / 192 kHz
  • Frequency Response: 20 Hz – 20 kHz (+/- 1 dB)
  • Harmonic Distortion: < 0.005 %
  • Signal-Noise Ratio: > 93 dB
  • Dynamic Range: > 100 dB
  • Audio Output Voltage: 2.5 V
  • Channel Separation: > 80 dB
  • Output Impedance Headphone Socket: 100 Ohm
  • Output Power Headphone Socket: 160 mW (300 Ohm)
  • Max. Power Consumption: 25 Watt
  • Inputs: 1 x Headphone Jack 6.3 mm, 1 x 3.5 mm Jack (Power Control)

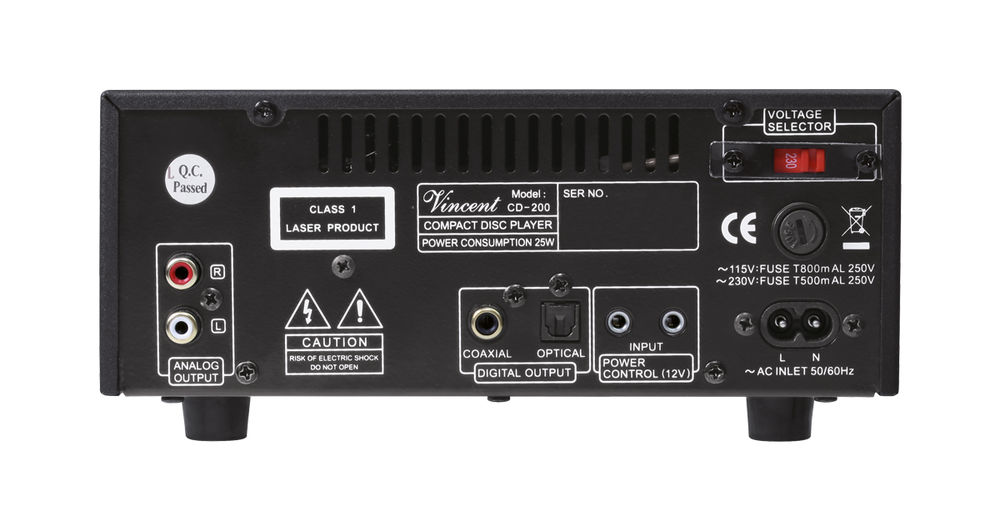

  • Outputs: 1 x Stereo RCA, 1 x Optical, 1 x Coaxial, 1 x 3.5mm Jack (Power Control)
  • Tubes: 1 x 6N2
  • Colour: Black / Silver
  • Weight: 4 kg
  • Dimensions (WxHxD): 210 x 95 x 305 mm
