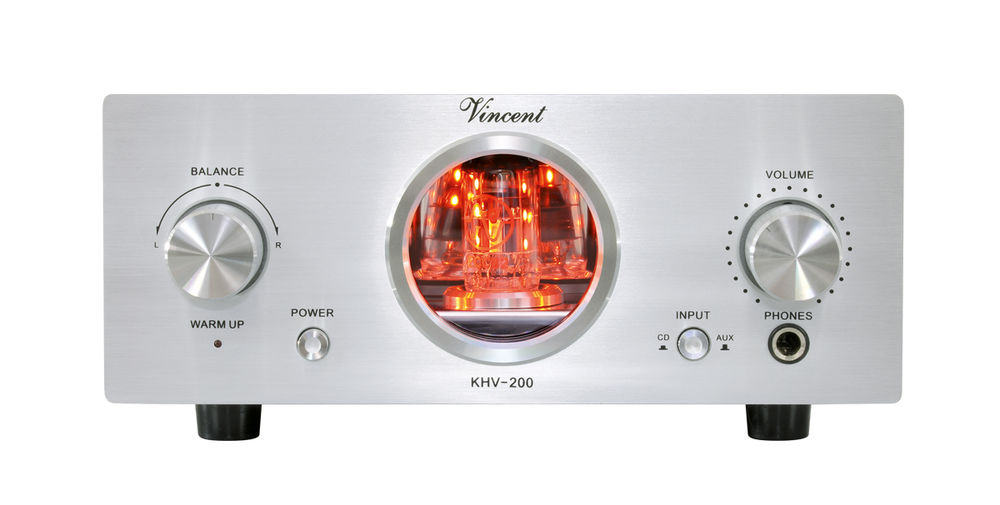

KHV-200

tubeLine

Hybrid Headphone Amplifier

To get the best sound quality of your headphones, an external headphone amplifier is needed. In collaboration with degreed engineer Frank Blöhbaum we developed the KHV-200. It was designed that almost every headphone could be driven with the best sound quality. Beside a 6.3mm headphone socket it also has an 4 pin XLR socket for the connection of high end headphones.

Technical Specifications

  • Frequency Response: 20 Hz - 20 kHz (± 0,1 dB)
  • T.H.D.: < 0,01% (1 kHz; 0,1 W; 32 Ohm)
  • Signal-Noise Ratio: > 95 dB
  • Input Impedance: 33 kOhm
  • Max. Input Voltage: 4 Veff
  • Nominal Amplification Headphone Out: Low Gain: -2,66 dB, High Gain: 13,64 dB
  • Nominal Amplification Preamp Out: Low Gain: -11,06 dB, High Gain: 5,13 dB
  • Nominal Amplification Record Out: 0 dB

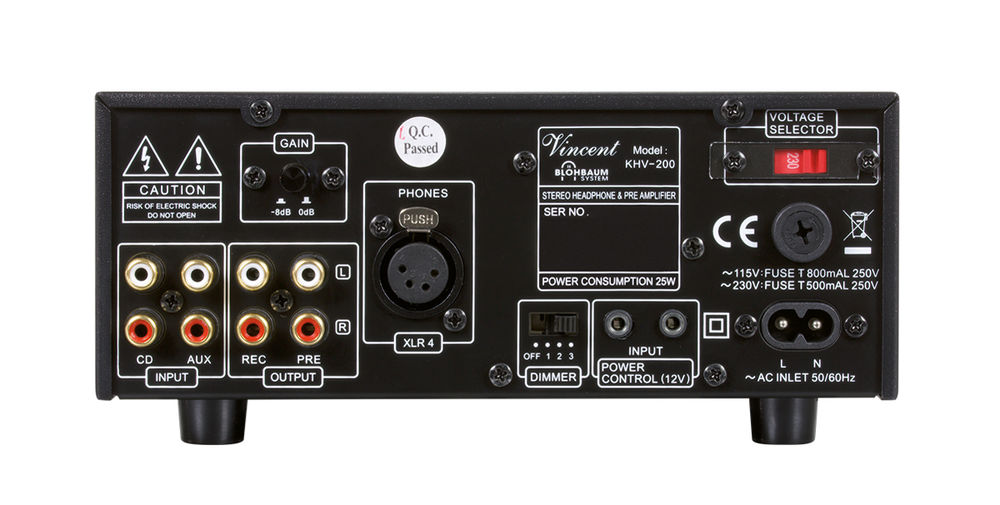

  • Inputs: 2 x Stereo RCA
  • Outputs: 1 x Stereo RCA Pre Out, 1 x Stereo RCA Rec Out, 1 x Headphone 6,3 mm Stereo jack, 1 x Headphone XLR 4-pin Stereo
  • Tubes: 2 x E180F/6SCH9P, 1 x ECC82
  • Colour: Black / Silver
  • Weight: 3,6 kg
  • Dimensions (W x H x D): 210 x 85 x 277 mm
