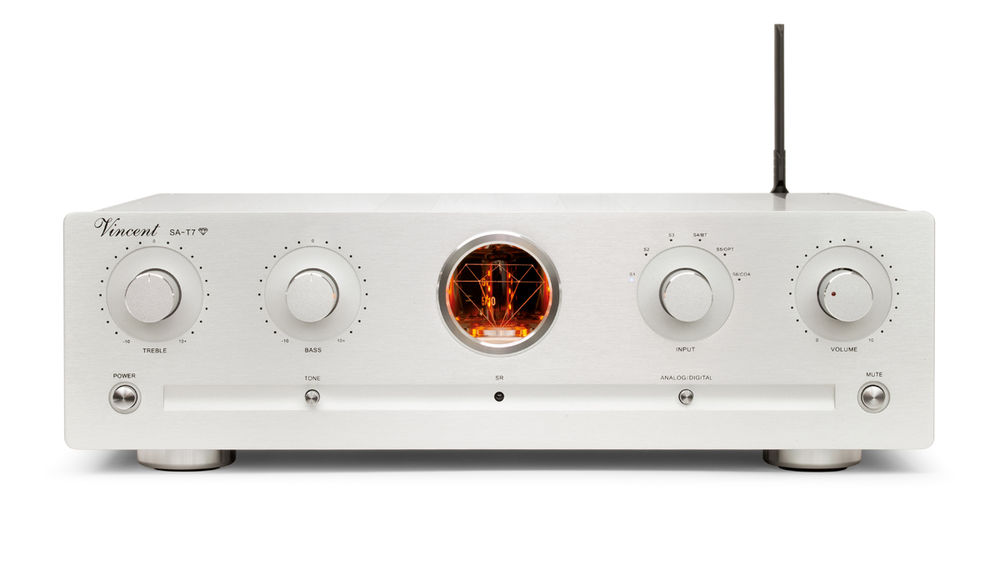

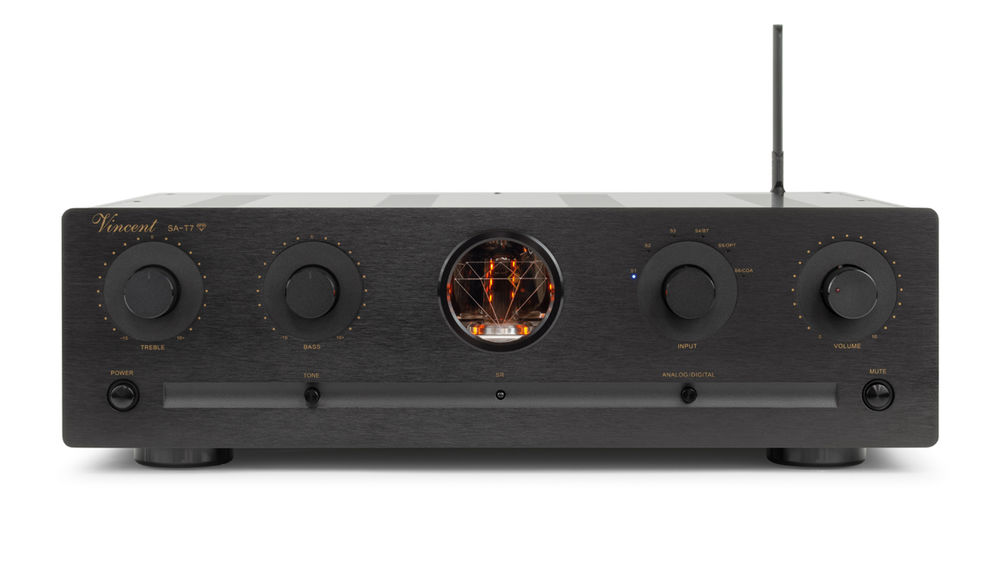

SA-T7 Diamond


Stereo Tube Preamplifier

With the SA-T7 Diamond we have created a very special edition of our reference preamplifier, the SA-T7 MK. The heart of the preamplifier was equipped with original Telefunken tubes from German production. The result is a special edition in a class of its own. Everything the SA-T7 and SA-T7MK were praised for is made even better with the use of these tubes.

Technical Specifications

  • Frequency Response: 10Hz – 100kHz +/- 0,1 dB
  • Output Voltage: 3 V
  • T.H.D.: < 0,001 % (1 kHz, Output Voltage 2Veff an 10 KOhm)
  • Amplification: typ. 13,3 dB (Volume Control max. Gain)
  • Input Sensitivity: 430 mV (2V Output Voltage)
  • Signal-to-Noise Ratio: typ. > 100dB (A)
  • Input Impedance: > 22 kOhm
  • Max. Power Consumption: 58 Watt

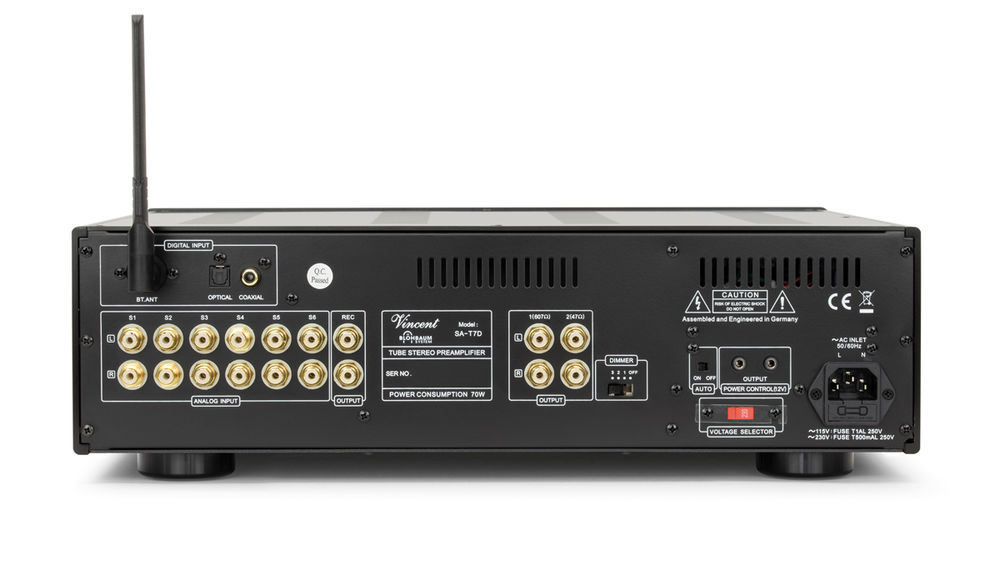

  • Inputs: 6 x Stereo RCA, 1 x Optical, 1 x Coaxial, 1 x Bluetooth
  • Outputs: 2 x Stereo RCA Pre-Out, 1 x Stereo RCA Rec-Out, 2 x 3,5 mm Jack (Power Control)
  • Tubes: 4 x Telefunken PCF 803, 1 x 85A2
  • Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Colour: Black / Silver
  • Weight: 8,5 kg
  • Dimensions (WxHxD): 430 x 135 x 370 mm
