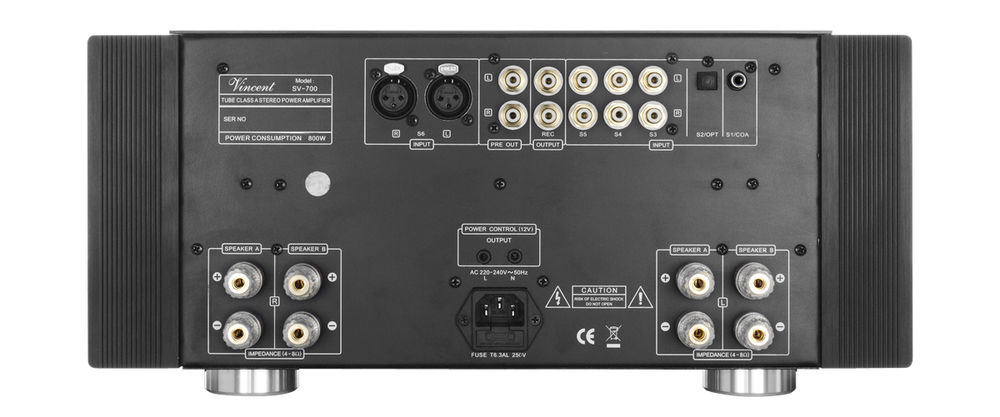

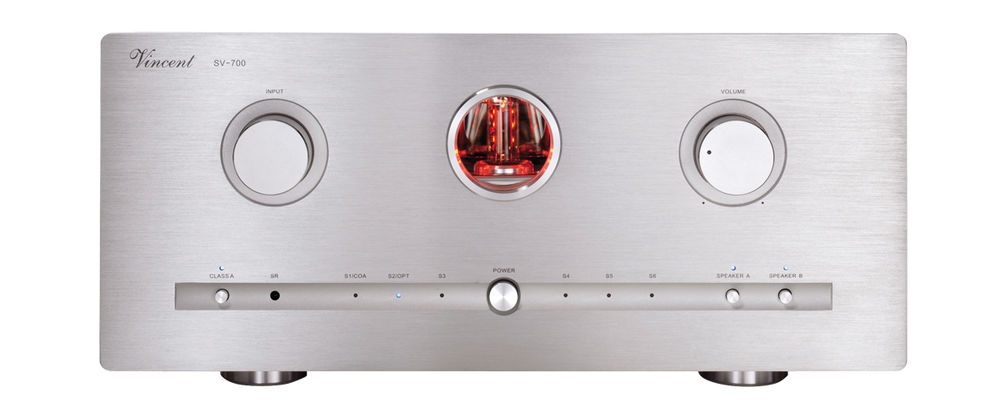

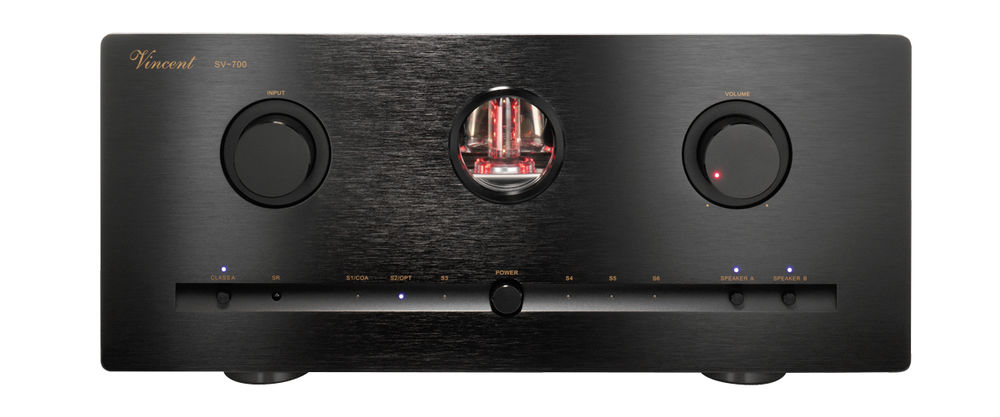

SV-700

tubeLine

Class-A Hybrid Integrated Amplifier

We decided on a consistent symmetrical design to minimize crossfeed and achieve a better distortion factor. In the pre-amp, 3 tubes per side work with the Shunt Regulatet Push-Pull concept to process the souond signals. This ensures more precise bass reproduction and a better performance in the mid and high level sound range.

Technical Specifications

  • Frequency Response: 20 Hz – 20 kHz +/-0.5 dB, 20 Hz - 50 kHz +/- 2 dB
  • Nominal Output Power RMS / 8 Ohm: 2 x 100 Watt
  • Nominal Output Power RMS / 4 Ohm: 2 x 160 Watt
  • Nominal Output Power Class A / 8 Ohm: 2 x 50 Watt
  • Harmonic Distortion: < 0.1% (1 kHz, 1 Watt)
  • Input Sensitivity: 350 mV
  • Signal-Noise Ratio: > 90 dB
  • Input Impedance: 47 kOhm
  • Max. Power Consumption: 533 Watt
  • Inputs: 3 x Stereo RCA, 1 x Stereo XLR, 1 x Optical, 1 x Coaxial
  • Outputs: 1 x Stereo Pre Out, 1 x Stereo Rec Out, 4 x 2 Speaker Terminal, 2 x 3.5 mm Jack (Power Control)
  • Tubes: 1 x 6Z4, 2 x 12AX7, 4 x 12AU7
  • Playable Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Colour: Black / Silver
  • Weight: 24.2 kg
  • Dimensions (WxHxD): 430 x 192 x 430 mm

SA-T7 Diamond

Stereo Tube Preamplifier

With the SA-T7 Diamond we have created a very special edition of our reference preamplifier, the SA-T7 MK.

SA-T7MK

Stereo Tube Preamplifier

After several successful years, we have revised our reference preamplifier. The SA-T7 becomes the SA-T7 MK.

SP-T700

Class-A Hybrid Mono Poweramplifier

Many have already lost their hearts to these little monoblocks that have been tried and tested in particular with the SA-T7.

SV-737

Class-A Hybrid Integrated Amplifier

Our new flagship of the integrated amplifiers. The preamp section was completely new developed and benefits of our SA-T7.

SV-237MKII

Class-A Hybrid Integrated Amplifier

The third edition of our successful model is presented in a completely revised design.

SV-200

Hybrid Integrated Amplifier

The TubeLine in a compact design, but not "compact" in sound quality.

CD-S7 DAC

Hybrid CD-Player

This CD player has a symmetrically designed output stage and the capability ofplaying new media.

CD-200

Hybrid CD-Player

With the CD-200 we present the perfect match fort he SV-200.

DAC-700

D/A Converter

Digital/Analogue-converter for the highest demands. Totally six different inputs are available working with a sampling rate up to 32bit and support DSD files.

PHO-701

Phono Preamplifier

The successor to the PHO-700 phono premaplifier with tube output stage. Suitable for MM and MC cartridges.

KHV-200

Hybrid Headphone Amplifier

To get the best sound quality of your headphones, an external headphone amplifier is needed.
