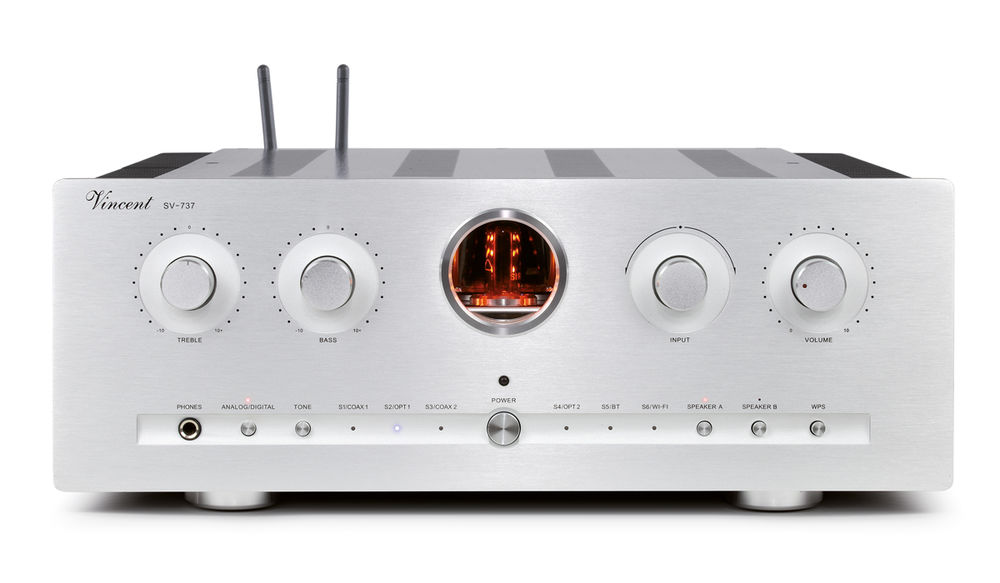

SV-737

tubeLine

Class-A Hybrid Integrated Amplifier

Our new flagship of the integrated amplifiers. The preamp section was completely new developed and benefits a lot of the SA-T7. Through the build-in Wifi modul the amplifier music streaming could be done and it could be integrated in your home network.

Technical Specifications

  • Frequency Response: 20 Hz - 20 kHz +/- 0.3 dB, 20 Hz - 50 kHz +/- 1 dB
  • Nominal Output Power RMS / 8 Ohm: 2 x 180 Watt
  • Nominal Output Power RMS / 4 Ohm: 2 x 300 Watt
  • Nominal Output Power Class A / 8 Ohm: 2 x 10 Watt
  • Harmonic Distortion: < 0.02 %
  • Input Sensitivityt: 300 mV
  • Signal-Noise Ratio: > 90 dB
  • Input Impedance: 47 kOhm
  • Max. Power Consumption: 590 Watt

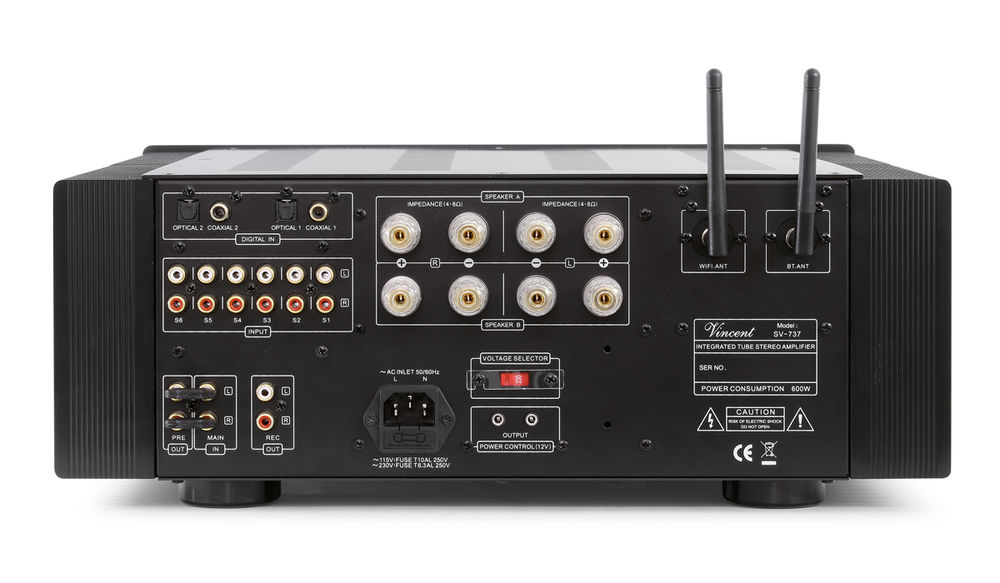

  • Inputs: 6 x Stereo RCA, 2 x Optical, 2 x Coaxial, 1 x Bluetooth, 1 x Stereo Main In
  • Outputs: 1 x Stereo Pre Out, 1 x Stereo Rec Out, 4 x 2 Speaker Terminals, 2 x 3,5 mm jack (Power Control)
  • Tubes: 2 x 6N1P, 2 x 6N2P, 1 x 85A2
  • Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
  • Colour: Black / Silver
  • Weight: 21 kg
  • Dimensions (WxHxD): 430 x 165 x 430 mm
