The successor of our CD-S1.1 offers now also the possibilty to process external, digital signals via an optical, coax or USB input. Those are converted through the Burr-Brown chip PCM 1796. In the analog section the signal is conditioned through two 6N16 tubes which are responsible for a homogeneous and distinctive sound.

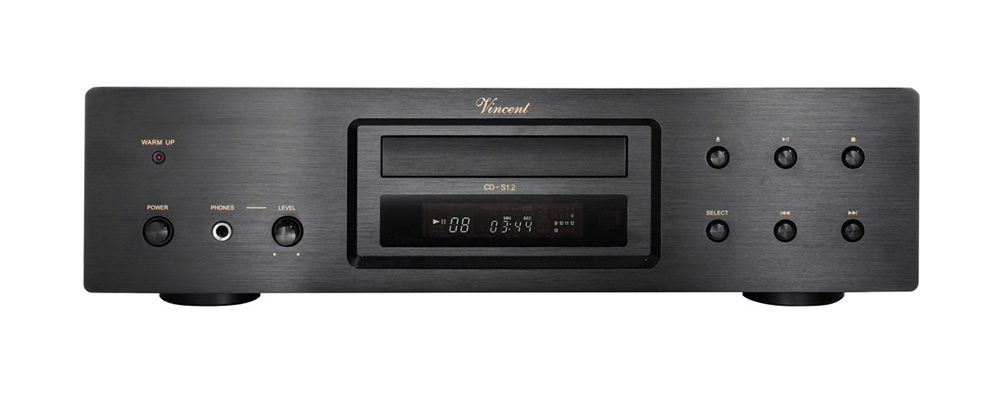

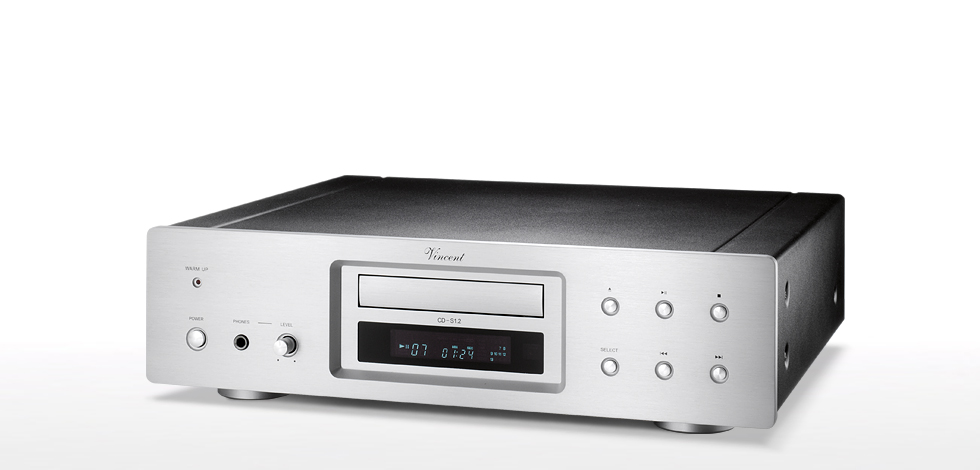

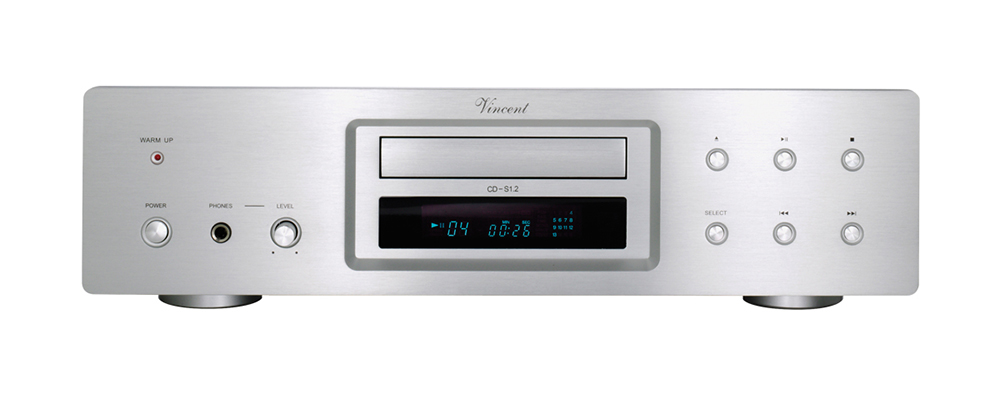

CD-S1.2
powerLine
Hybrid CD-Player
Technical Specifications
- D/A Converter: 24 bit / 192 kHz
- Frequency Response: 20 Hz - 20 kHz
- T.H.D.: < 0.005 %
- Signal-Noise-Ratio: > 94 dB
- Dynamic Range: > 100 dB
- Audio Output Voltage: 2.5 V
- Channel Separation: > 90 dB
- Max. Power Consumption: 35 Watts

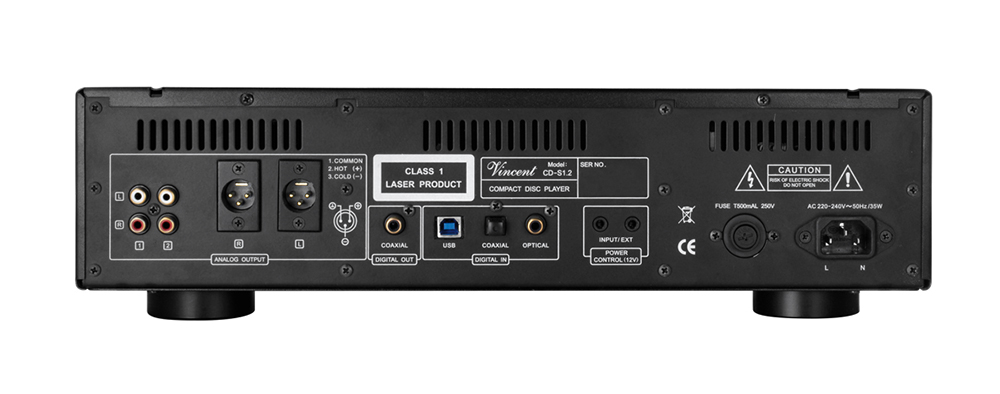

- Inputs: 1 x Optical, 1 x Coaxial, 1 x USB, 1 x Power Control
- Outputs: 2 x Stereo RCA, 1 x Stereo XLR, 1 x Coaxial, 1 x Power Control, 1 x Headphone Jack
- Tubes: 2 x 6N16
- Colour: Black or Silver
- Weight: 8.5 kg
- Dimensions (W x H x D): 430 x 106 x 342 mm
