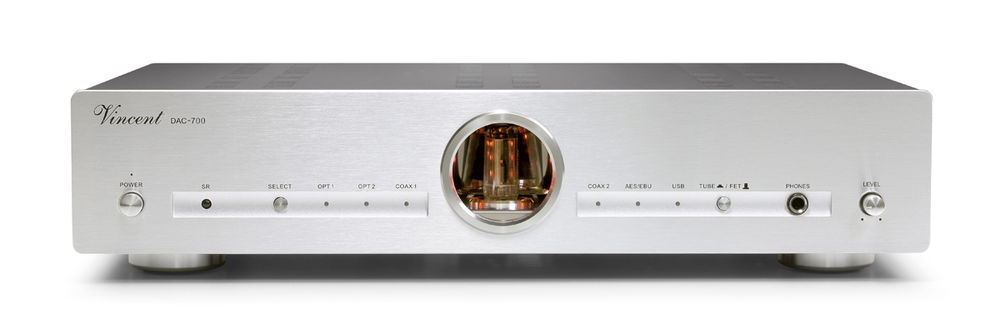

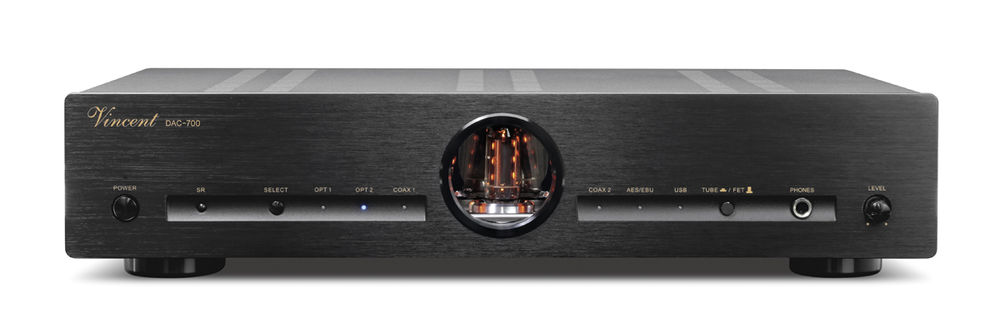

DAC-700

tubeLine

D/A Converter

Digital/Analogue-converter for the highest demands. Totally six different inputs are available, working with a sampling rate up to 32 bit abd supports DSD files. The analogue part is working fully balanced and has a tube output stage.

Technical Specifications

  • Sampling Rate Coaxial, Optical: PCM 24 Bit / 192 kHz (DSD 64)
  • Sampling Rate USB: PCM 32 Bit / 384 kHz (DSD 512)
  • Frequency Response: 20 Hz – 20 kHz (+/- 0.5 dB)
  • T.H.D.: <0.004 %
  • Signal-To-Noise-Ratio: >95 dB
  • Dynamic Range: >100 dB
  • Audio Output Voltage: 2.5 V
  • Channel Separation: >90 dB
  • Output Impedance: 600 Ohm
  • Max. Power Consumption: 35 W

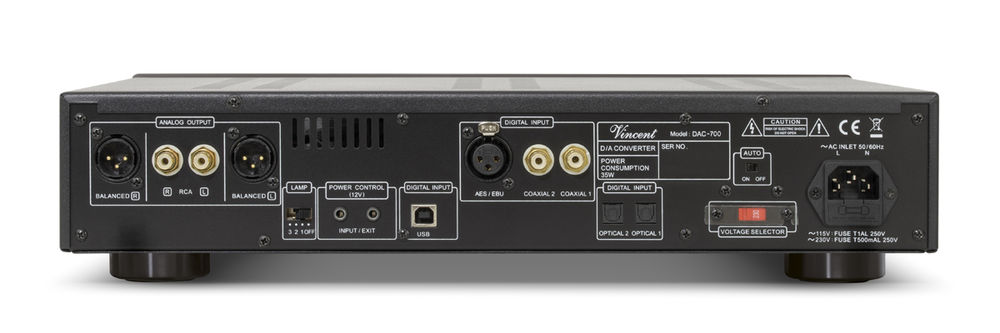

  • Inputs: 1 x USB, 2 x Optical, 2 x Coaxial, 1 x AES, 3.5 mm Jack (Power Control)
  • Outputs: 1 x Stereo RCA, 1 x Stereo XLR, 3.5 mm Jack (Power Control)
  • Tubes: 1 x 6Z4, 2 x 12AU7
  • Playable Formats: MP3, WMA, AAC, AAC+, ALAC, FLAC,APE, WAV, DSD
  • Colour: Black / Silver
  • Dimensions (W x H x D): 430 x 95 x 360 mm
  • Weight: 6.9 k

DAC-1MK

D/A-Converter

The DAC-1MK converts digital music files with a max. sampling rate of 32 bit / 384 kHz (DSD).
