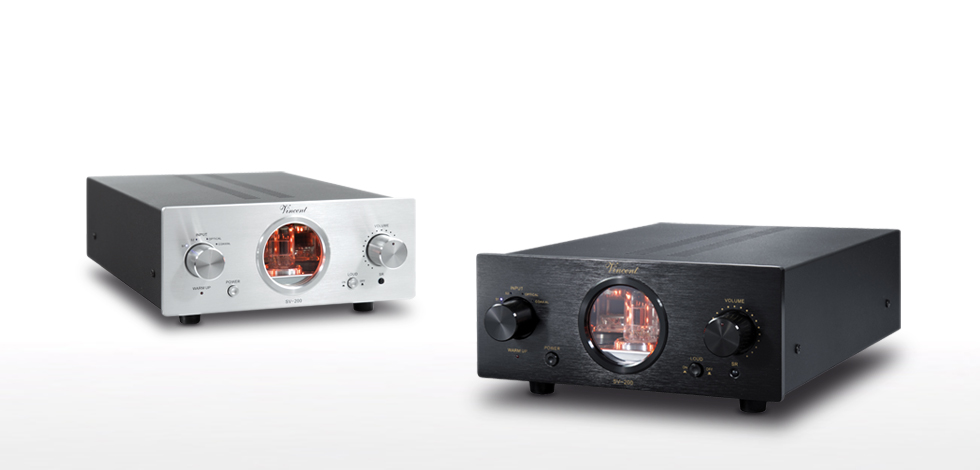

With the SV-200 we present the little brother of the SV-237MK and the SV-700. Despite the compact construction only a few compromises had to be made. A high dynamic and a low noise level stand out for this amplifier. The music signal is conditioned through two 6N1 tubes.
SV-200
tubeLine
Hybrid Integrated Amplifier
Technical Specifications
- Frequency Response: 20 Hz - 20 kHz ±0,5 dB
- Nominal Output Power RMS / 8 Ohm: 2 x 25 Watt
- Nominal Output Power RMS / 4 Ohm: 2 x 35 Watt
- Harmonic Distortion: < 0.1 % (1 kHz, 1 Watt)
- Input sensitivity: 220 mV
- Signal-Noise Ratio: > 72 dB
- Input Impedance: 47 kOhm
- Max. Power Consumption: 125 Watt
- Inputs: 2 x Stereo RCA, 1 x Coaxial, 1 x Optical
- Outputs: 1 x Stereo RCA Pre Out, 1 x Stereo RCA Rec Out, 2 x 2 Speaker Terminal, 2 x 3.5 mm Jack (Power Control)
- Tubes: 2 x 6N1
- Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
- Colour: Black / Silver
- Weight: 5 kg
- Dimensions (WxHxD): 210 x 95 x 320 mm
SV-228
Hybrid Integrated Amplifier
The SV-228 is the consistent further development of one of ours successful amplifiers series in the Power Line.
SV-237MKII
Class-A Hybrid Integrated Amplifier
The third edition of our successful model is presented in a completely revised design.
SV-500
Hybrid Integrated Amplifier
A"little" hybrid amp with the successful Vincent quality and a very good balance between price and performance
SV-700
Class-A Hybrid Integrated Amplifier
In order to minimize crossfeeds and achieving a better distortion factor we decided upon a consistent symmetric design
SV-737
Class-A Hybrid Integrated Amplifier
Our new flagship of the integrated amplifiers. The preamp section was completely new developed and benefits of our SA-T7.
