Our access into the "Hybridworld" of Vincent. On the basis of the established SV-227, we have developed this amplifier. With a little less output power, but with a similar timeless design and with the typical Vincent sound characteristics the SV-500 is presented.

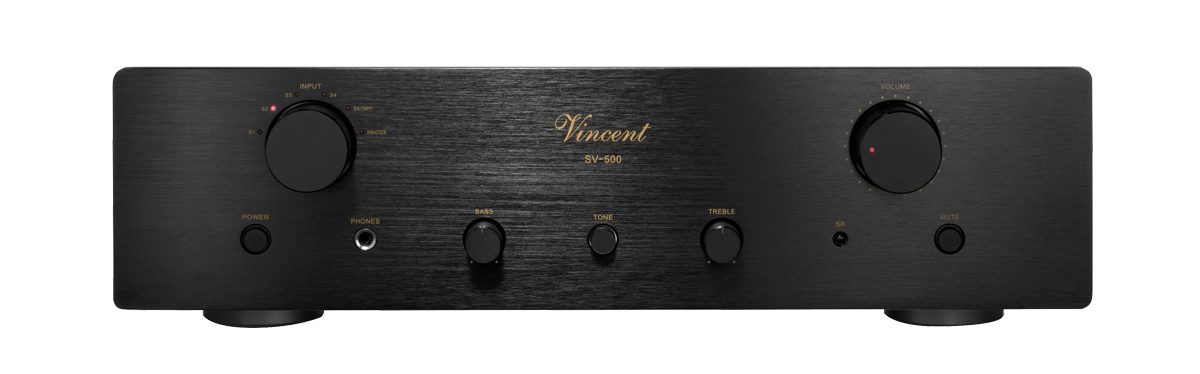

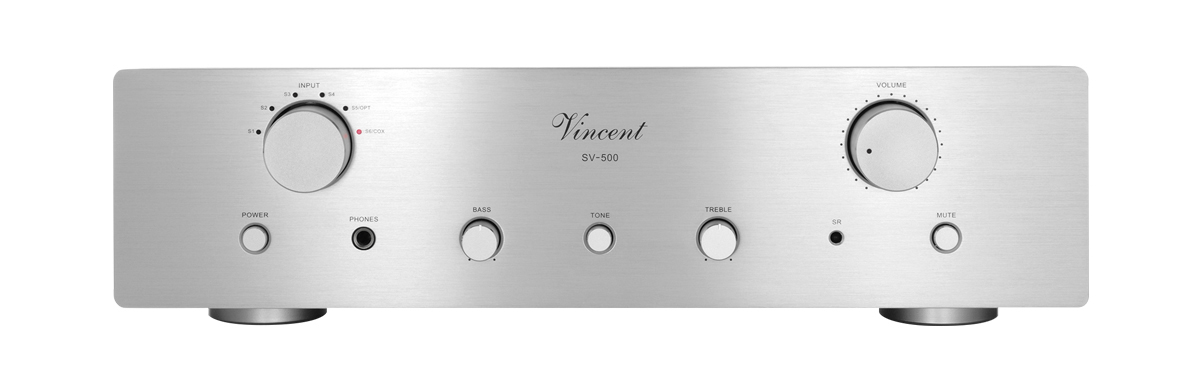

SV-500
powerLine
Hybrid Integrated Amplifier
Technical Specifications
- Frequency Response: 20 Hz – 20 kHz +/- 0.5 dB; 20 Hz - 50 kHz +/- 2 dB
- Nominal Output Power RMS/8 Ohm: 2 x 50 Watt
- Nominal Output Power RMS/4 Ohm: 2 x 80 Watt
- Input Sensitivity: 420 mV
- T.H.D.: < 0.1% (1 kHz, 1 Watt)
- Signal-Noise Ratio: >90dB
- Input Impedance: 47 kOhm
- Inputs: 4 x Stereo RCA, 1 x Optical, 1 x Coax
- Outputs: 1 x Stereo RCA Rec Out, 1 x Stereo RCA Pre Out, 2 x Power Control, 2 x 2 Speaker Terminal
- Playable Digital Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
- Tubes: 1 x 12AX7, 2 x 6N1
- Colour: Black or Silver
- Weight: 10kg
- Dimensions (W x H x D): 430 x 118 x 375 mm
SV-200
Hybrid Integrated Amplifier
The TubeLine in a compact design, but not "compact" in sound quality.
SV-228
Hybrid Integrated Amplifier
The SV-228 is the consistent further development of one of ours successful amplifiers series in the Power Line.
SV-237MKII
Class-A Hybrid Integrated Amplifier
The third edition of our successful model is presented in a completely revised design.
SV-500MK
Hybrid Integrated Amplifier
The SV-500 MK presents itself in a timeless design and with the typical Vincent sound character.
SV-700
Class-A Hybrid Integrated Amplifier
In order to minimize crossfeeds and achieving a better distortion factor we decided upon a consistent symmetric design

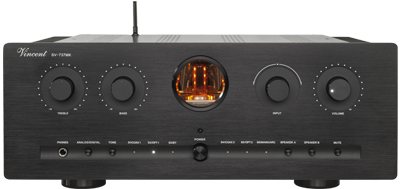

SV-737
Class-A Hybrid Integrated Amplifier
Our new flagship of the integrated amplifiers. The preamp section was completely new developed and benefits of our SA-T7.
