We decided on a consistent symmetrical design to minimize crossfeed and achieve a better distortion factor. In the pre-amp, 3 tubes per side work with the Shunt Regulatet Push-Pull concept to process the souond signals. This ensures more precise bass reproduction and a better performance in the mid and high level sound range.

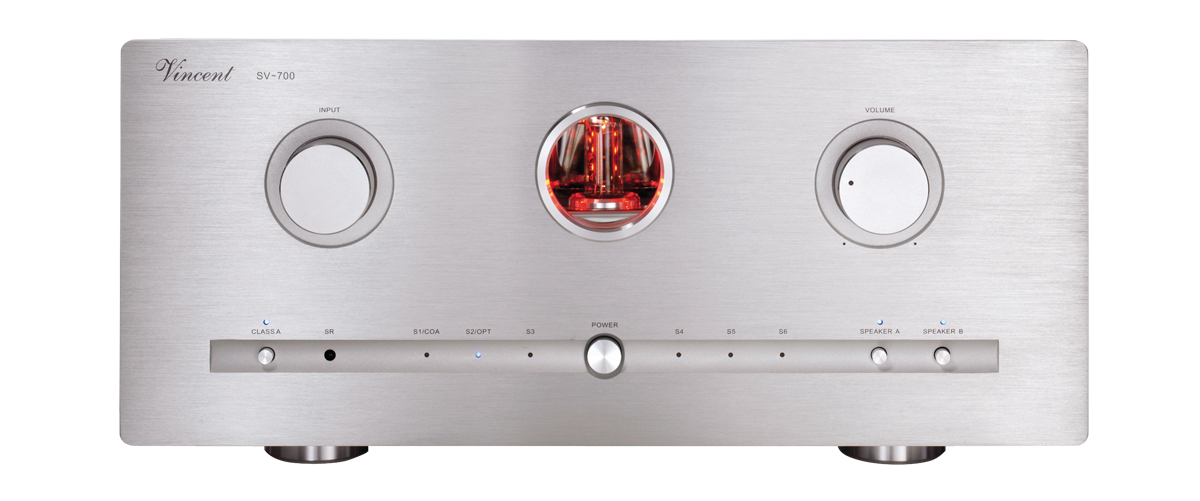

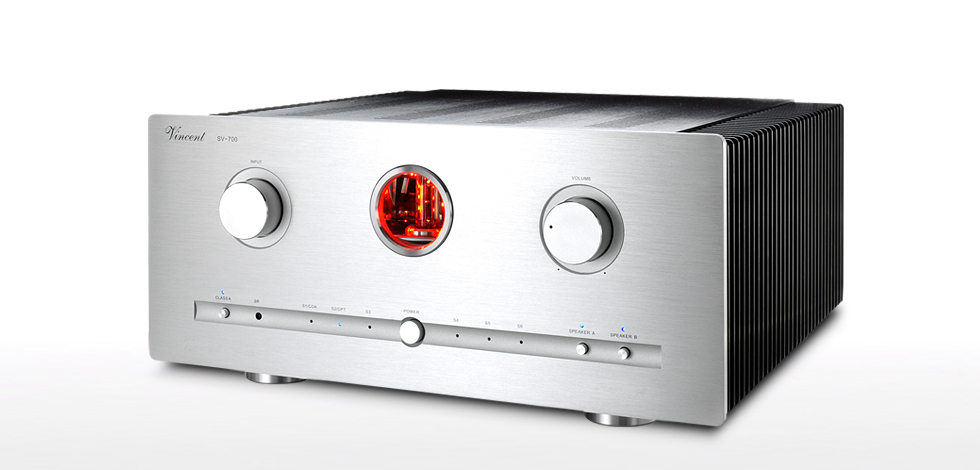

SV-700
tubeLine
Class-A Hybrid Integrated Amplifier
Technical Specifications
- Frequency Response: 20 Hz – 20 kHz +/-0.5 dB, 20 Hz - 50 kHz +/- 2 dB
- Nominal Output Power RMS / 8 Ohm: 2 x 100 Watt
- Nominal Output Power RMS / 4 Ohm: 2 x 160 Watt
- Nominal Output Power Class A / 8 Ohm: 2 x 50 Watt
- Harmonic Distortion: < 0.1% (1 kHz, 1 Watt)
- Input Sensitivity: 350 mV
- Signal-Noise Ratio: > 90 dB
- Input Impedance: 47 kOhm
- Max. Power Consumption: 533 Watt

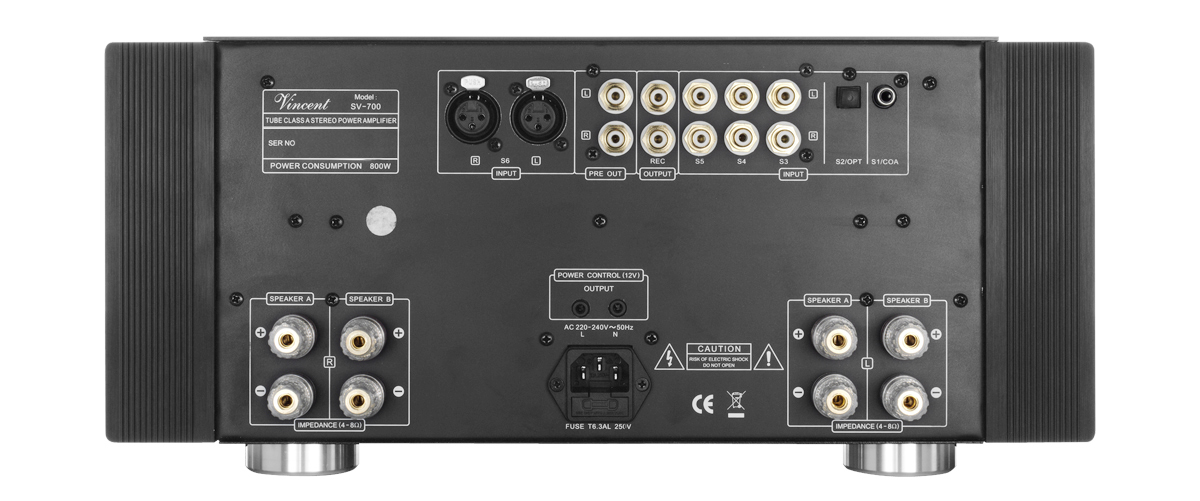

- Inputs: 3 x Stereo RCA, 1 x Stereo XLR, 1 x Optical, 1 x Coaxial
- Outputs: 1 x Stereo Pre Out, 1 x Stereo Rec Out, 4 x 2 Speaker Terminal, 2 x 3.5 mm Jack (Power Control)
- Tubes: 1 x 6Z4, 2 x 12AX7, 4 x 12AU7
- Playable Formats: WAV, FLAC, APE, LPCM, MP3, ACC, AC3, WMA
- Colour: Black / Silver
- Weight: 24.2 kg
- Dimensions (WxHxD): 430 x 192 x 430 mm
SV-200
Hybrid Integrated Amplifier
The TubeLine in a compact design, but not "compact" in sound quality.
SV-228
Hybrid Integrated Amplifier
The SV-228 is the consistent further development of one of ours successful amplifiers series in the Power Line.
SV-237MKII
Class-A Hybrid Integrated Amplifier
The third edition of our successful model is presented in a completely revised design.
SV-500
Hybrid Integrated Amplifier
A"little" hybrid amp with the successful Vincent quality and a very good balance between price and performance
SV-737
Class-A Hybrid Integrated Amplifier
Our new flagship of the integrated amplifiers. The preamp section was completely new developed and benefits of our SA-T7.
