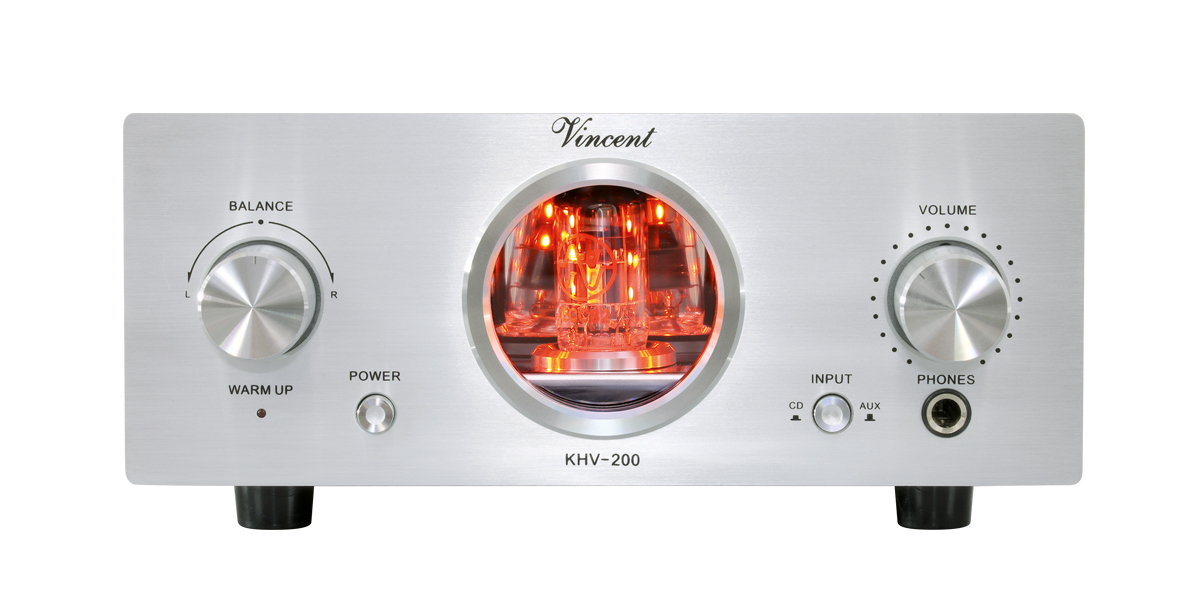

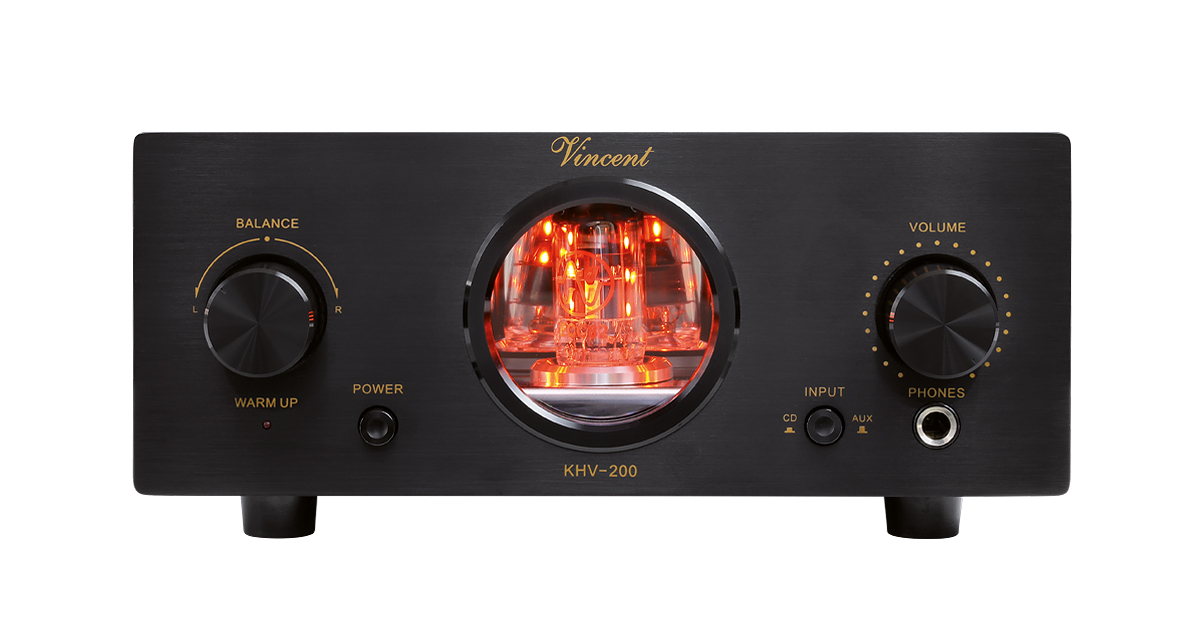

KHV-200

tubeLine

Hybrid Headphone Amplifier

To get the best sound quality of your headphones, an external headphone amplifier is needed. In collaboration with degreed engineer Frank Blöhbau we developed the KHV-200. It was designed that almost every headphone could be driven with the best sound quality. Beside a 6.3mm headphone socket it also has an 4 pin XLR socket for the connection of high end headphones.

Technical Specifications

  • Frequency range: 20 Hz - 20 kHz (± 0,1 dB)
  • Harmonic dirtortion: < 0,01% (1 kHz; 0,1 W; 32 Ohm)
  • Signal-Noise Ratio: > 95 dB
  • Input Impedance: 33 kOhm
  • Max. Input Voltage: 4 Veff
  • Nominal Amplification Headphone Out: Low Gain: -2,66 dB, High Gain: 13,64 dB
  • Nominal Amplification Preamp Out: Low Gain: -11,06 dB
  • High Gain: 5,13 dB
  • Nominal Amplification Record Out: 0 dB, Inputs: 2 x Stereo RCA

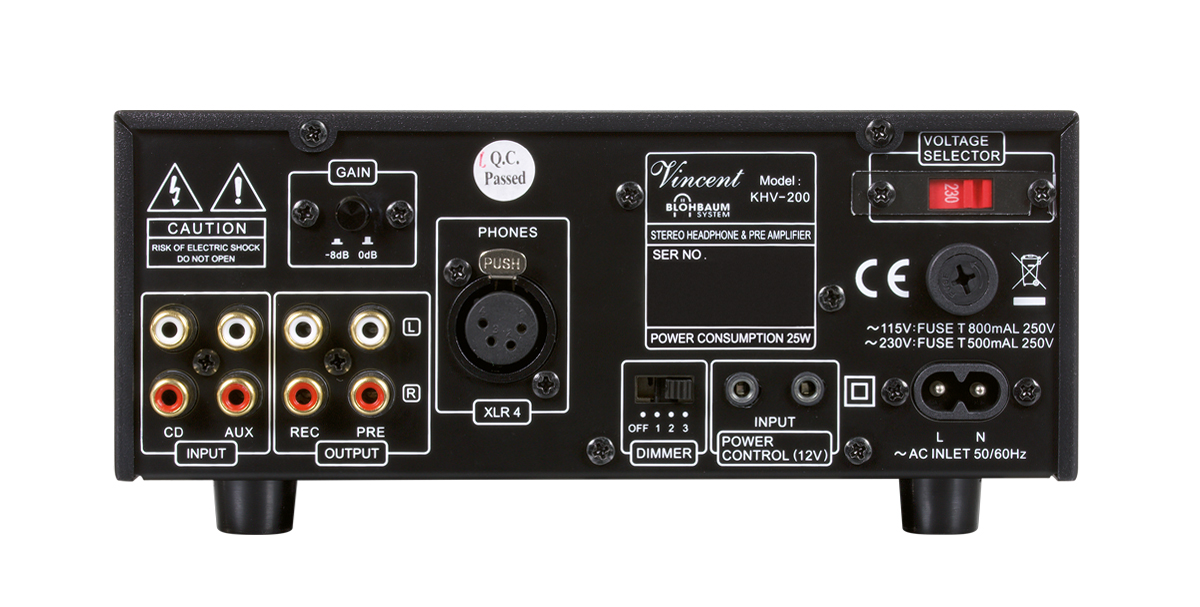

  • Outputs: 1 x Stereo RCA (PRE OUT), 1 x Stereo RCA (REC OUT), 1 x Headphone 6,3 mm Stereo jack, 1 x Headphene XLR 4-pin Stereo
  • Power Supply: 230 V/50 Hz und 115 V/50/60 Hz (switchable)
  • Dimensions (W x H x D): 210 x 85 x 277 mm
  • Weight: 3,6 kg
  • Colors: Black/Silver
  • Tubes: 2 x E180F/6SCH9P, 1 x ECC82

PHO-200

Phono Preamplifier

Phono-Premamplifier for connecting your turntable to a line inout of your amplifier.

PHO-300

Phono Preamplifier

Phono-Premamplifier for connecting your turntable to a line inout of your amplifier.

PHO-500

Phono Preamplifier

A unsophisticated and low noise playback is the "job" of a good phono preamplifier. With the PHO-500 we managed this.

PHO-701

Phono Preamplifier

The successor to the PHO-700 phono premaplifier with tube output stage. Suitable for MM and MC cartridges.
