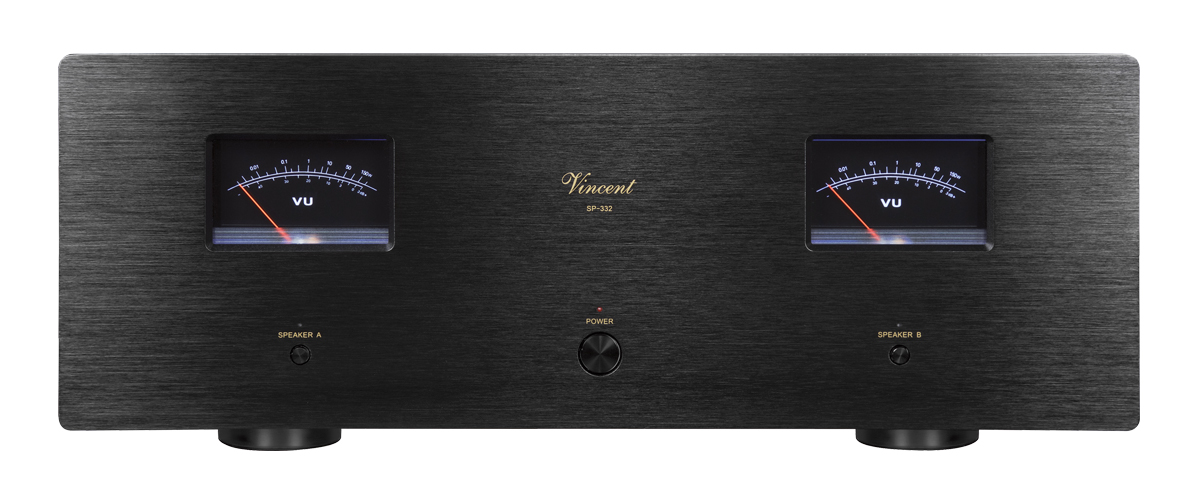

SP-332

powerLine

Hybrid Stereo Poweramplifier

Hybrid Stereo Poweramplifier drawing from the legendary SP-331, the new SP-332 power amplifier was developed. Two additional 6N16 tubes were added to the input section to make the sound signal more warm dn natural. The VU-meters with user selectable colored backlighting complete the timeless design.

Technical Specifications

  • Frequency Response: 20 Hz - 20 kHz +/- 0.5 dB
  • Nominal Output Power RMS / 8 Ohm: 2 x 150 Watt
  • Nominal Output Power RMS / 4 Ohm: 2 x 250 Watt
  • Harmonic Distortion: < 0.1 % (1 kHz, 1 Watt)
  • Input Sensitivity: 1.35 Volt
  • Signal-Noise Ratio: > 91 dB
  • Input Impedance: 47 kOhm
  • Max. Power Consumption: 531 Watt
  • Inputs: 1 x Stereo RCA, 1 x Stereo XLR, 1 x 3.5 mm Jack (Power Control)
  • Outputs: 2 x 4 Speaker Terminal, 1 x 3.5 mm Jack (Power Control)
  • Tubes: 2 x 6N16, 1 x 6N15
  • Colour: Black / Silver
  • Weight: 21 kg
  • Dimensions (W x H x D): 430 x 165 x 430 mm

SP-T700

Class-A Hybrid Mono Poweramplifier

Many have already lost their hearts to these little monoblocks that have been tried and tested in particular with the SA-T7.
